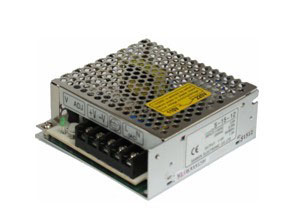

See larger image -Please click product image
S-25
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||
Model | S-25-5 | S-25-12 | S-25-15 | S-25-24 | |||
Output | DC Voltage | 5V | 12V | 15V | 24V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | |||
Rated Current | 5A | 2.1A | 1.7A | 1.1A | |||
Current Range | 0-5A | 0-2.1A | 0-1.7A | 0-1.1A | |||
Rated Power | 25W | 25.2W | 25.5W | 26.4W | |||
Ripple & Noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |||
DC Voltage Adj. Range | +10,-5% | ±10% | ±10% | ±10% | |||
Setup, Rise, Hold time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC full load | ||||||
Input | Voltage Range | 85～264 VAC 47～ 63 Hz；120～370VDC | |||||
AC Current | 0.6 A/115 V 0.35A/ 230 V | ||||||
Efficiency | 72%/115VAC | 76%/115VAC | 77%/115VAC | 80%/115VAC | |||
Inrush Current | Cold start 15A/115V 30A/230V | ||||||
Leakage Current | ＜0.75 mA/240VAC | ||||||
Protection | Over Load | 110%～160% | |||||
Protection type：current limiting，recovers automatically after fault condition is removed | |||||||
Over Voltage | 115%～135% | ||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | |||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||||
Vibration | 10～500Hz，2G 10min./1 cycle，period for 60min，each along X,Y,Z axes | ||||||
Safety | Withstand Voltage | I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG：100M Ohms/500VDC | ||||||
Standards | Safety Standard | Design refer to UL1012, TUV EN60950 | |||||
EMC Standard | Design refer to EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5；ENV50204，EN55024 | ||||||
Others | Weight | 0.28Kg | |||||
Packing | 45pcs/13.2Kg/0.99CUFT | ||||||
Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. | ||||||
