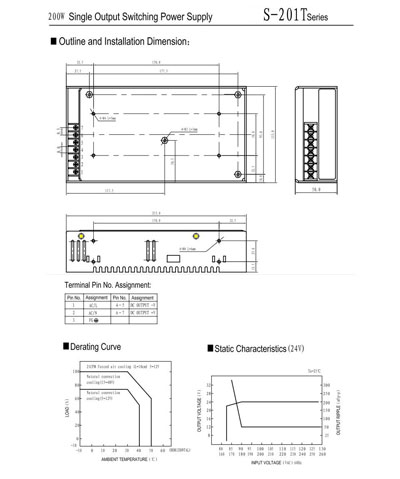

S-201T
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||||
Model | S-201T-12 | S-201T-13.5 | S-201T-15 | S-201T-24 | S-201T-27 | S-201T-48 | |||
OUTPUT | DC Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V | ||
Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Rated Current | 16.5A | 14.7A | 13A | 8.3A | 7.4A | 4.2A | |||
Current Range | 0-16.5A | 0-14.7A | 0-13A | 0-8.3A | 0-7.4A | 0-4.2A | |||
Rated Power | 198W | 198.45W | 198W | 199.2W | 199.8W | 201.6W | |||
Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |||
DC Adjustment Range | -16%，+10% | -12%，+11% | -10%，+20% | -16%，+10% | -4%，+18% | -15%，+17% | |||
Setup,Rise,Hold Time | 200ms,100ms,20ms at full load | ||||||||
INPUT | Voltage Range | 90～132 VAC/180～264VAC47～63 Hz；selected by switch 254～370VDC | |||||||
AC Current | 4.5A/115VAC 2.5A/230VAC | ||||||||
Efficiency | 76% | 79% | 78% | 82% | 82% | 83% | |||
Inrush Current | 50A/115V 50A/230V | ||||||||
Leakage Current | ＜3.5 mA/240VAC | ||||||||
PROTECTION | Over Load | 115%～135% | |||||||
Protection type: Current limiting, recovers automatically after fault condition is removed | |||||||||
Over Voltage | 115%～135% | ||||||||
Protection type: Voltage limiting, recovers automatically after fault condition is removed. | |||||||||
Working Temp., Humidity | RTH3≥90℃，shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
SAFETY | Storage Temp., Humidity | -10℃～+50℃；20%～90 %RH | |||||||
Vibration | -20℃～+85℃；10%～95 %RH | ||||||||
Withstand Voltage | 10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||||||
STANDARD | Isolation Resistance | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||||||
Safety Standard | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||||
OTHERS | EMC Standard | Design refer to UL1950 | |||||||
Weight | Drsign refer to FCC Part15 J Conduction Class A | ||||||||
| Packing | 0.93Kg | |||||||
DC Voltage | 12pcs/11.6Kg/0.93CUFT | ||||||||
OUTPUT | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | ||||||||
