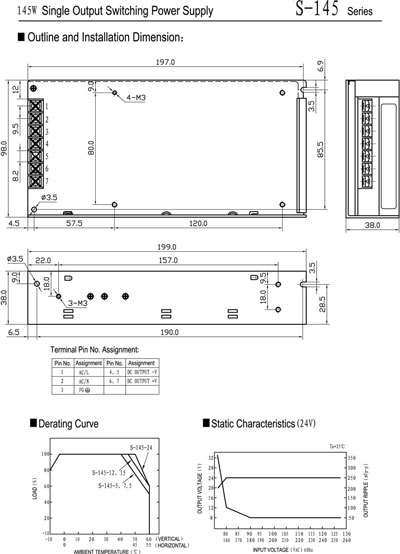

S-145
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||||
Model | S-145-5 | S-145-7.5 | S-145-12 | S-145-15 | S-145-24 | S-145-48 | |||
OUTPUT | DC Voltage | 5V | 7.5V | 12V | 15V | 24V | 48V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Rated Current | 25A | 18A | 12A | 9.6A | 6A | 3A | |||
Current Range | 0-25A | 0-18A | 0-12A | 0-9.6A | 0-6A | 0-3A | |||
Rated Power | 125W | 135W | 144W | 144W | 144W | 144W | |||
Ripple & Noise | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |||
DC Adjustment Range | ±10% | -20%，+10% | -12%，+10% | -12%，+10% | -12%，+16% | -10%，+15% | |||
Setup,Rise,Hold Time | 100ms,50ms,20ms at full load | ||||||||
INPUT | Voltage Range | 88～132 VAC/176～264VAC 47～63 Hz； | |||||||
AC Current | 3.2A/115 V 1.6A/ 230 V | ||||||||
Efficiency | 78% | 80.5% | 80.5% | 81% | 83.5% | 82% | |||
Inrush Current | Cold start 35A/230VAC | ||||||||
Leakage Current | ＜3.5 mA/240VAC | ||||||||
PROTECTION | Over Load | 115%～165% | |||||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||||
Over Voltage | 115%~135% | ||||||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||||
ENVIRONMENT | Working Temp., Humidity | -10℃～+60℃；20%～90 %RH | |||||||
Storage Temp., Humidity | -20℃～+85℃；10%～95 %RH | ||||||||
Vibration | 10～500Hz，2G 10min./1cycle，period for 60min, each along X, Y, Z axes | ||||||||
SAFETY | Withstand Voltage | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||||
STANDARD | Safety Standard | Design refer to UL1012 | |||||||
EMC Standard | Design refer to EN55022,IEC801-2,3,4 | ||||||||
OTHERS | Weight | 0.71Kg | |||||||
Packing | 30pcs/22kg/1.22CUFT | ||||||||
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | ||||||||
