S-320
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||||||
Model | S-320-5 | S-320-7.5 | S-320-12 | S-320-13.5 | S-320-15 | S-320-24 | S-320-27 | S-320-48 | |||
Output | DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | ||
Voltage Tolerance | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Rated Current | 50A | 36A | 25A | 22A | 20A | 12.5A | 11A | 6.5A | |||
Current Range | 0-50A | 0-36A | 0-25A | 0-22A | 0-20A | 0-12.5A | 0-11A | 0-6.5A | |||
Rated Power | 250W | 270W | 300W | 297W | 300W | 300W | 297W | 312W | |||
Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |||
DC Voltage Adj. Range | -10%，+14% | ±20% | -16%，+10% | -12%，+11% | -10%，+20% | -16%，+10% | -4%，+18% | -15%，+17% | |||
Setup, Rise, Hold time | 2s,20ms,20ms full load | ||||||||||
Input | Voltage Range | 88～132 VAC/176～264VAC 47～63 Hz；selected by switch 248～370VDC | |||||||||
AC Current | 6A/115 V 3.5A/ 230 V | ||||||||||
Efficiency | 77% | 80% | 82% | 83% | 84% | 86% | 86% | 87% | |||
Inrush Current | Cold start 20A/115V 40A/230V | ||||||||||
Leakage Current | ＜3.5mA/240VAC | ||||||||||
Protection | Over Load | 105%～135% | |||||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | |||||||||||
Over Voltage | 115%～135% | ||||||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | |||||||||||
FAN Control O.T.P | RT1≥65℃FAN ON，≤55℃FAN OFF，≥70℃ output shut down (5~15V) | ||||||||||
RT1≥70℃FAN ON，≤65℃FAN OFF，≥80℃ output shut down(24~48V) | |||||||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||||||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||||||||
Vibration | 10～500Hz，2G 10min./1cycle，period for 60min，each along X,Y,Z axes | ||||||||||
Safety | Withstand Voltage | I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG： 100M Ohms/500VDC | ||||||||||
Standards | Safety Standard | Design refer to UL1950 | |||||||||
EMC Standard | Design refer to EN55022，EN55024，EN61000 | ||||||||||
Others | Weight | 1.08Kg | |||||||||
Packing | 12pcs/13.5Kg/0.93CUFT | ||||||||||

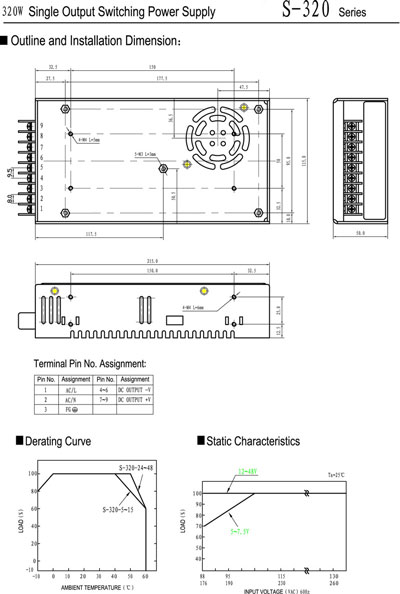

Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equpment must be re-confirmed that it still meets EMC directives. 5. Concrete output current see Derating Curve. | ||||||||||
