S-100

We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
S-100 Description

Features:
High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Fixed switching frequency at 25KHz
Cooling by free air convection
1 year warranty

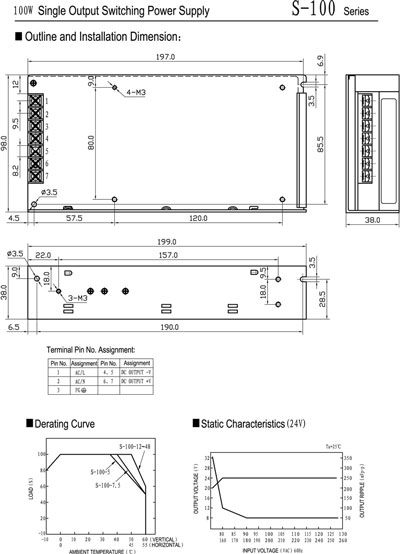

Dimensions: 199*98*38mm (L*W*H)



Shell code:H004

Model

S-100-3

S-100-5

S-100-7.5

S-100-12

S-100-15

S-100-18

S-100-24

S-100-27

S-100-48

Output

DC Voltage

3V

5V

7.5V

12V

15V

18V

24V

27V

48V

Voltage Tolerance

±2%

±2%

±1%

±1%

±1%

±1%

±1%

±1%

±1%

Rated Current

20A

20A

13.6A

8.5A

6.7A

5.6A

4.5A

3.7A

2A

Current Range

0-20A

0-20A

0-13.6A

0-8.5A

0-6.7A

0-5.6A

0-4.5A

0-3.7A

0-2A

Rated Power

60W

100W

102W

102W

100.5W

100.8W

108W

99.9W

96W

Ripple & Noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

150mVp-p

DC Voltage Adj. Range

-5%,+10%

-5%,+10%

±10%

±10%

±10%

±10%

±10%

-4%,+18%

±10%

Setup, Rise, Hold time

200ms,80ms,20ms at full load

Input

Voltage Range

85~132 VAC/180~264VAC 47~63 Hz;selected by switch 255~370VDC

AC Current

2.4A/115 V 1.2A/ 230 V

Efficiency

70%

78%

80%

81%

81%

82%

84%

84%

84%

Inrush Current

Cold start 30A/115V 60A/230V

Leakage Current

<1 mA/240VAC

Protection

Over Load

115%~165%

Protection type: Shut down o/p voltage, Repower on to recover.

Environment

Working Temp. & Humidity

-10℃~+60℃;20%~90 %RH

Storage Temp. & Humidity

-20℃~+85℃;10%~95 %RH

Vibration

10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

Safety

Withstand Voltage

I/P-O/P:1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG100M Ohms/500VDC

Standards

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part15 J Conduction Class B

Others

Weight

0.62Kg

Packing

30pcs/19Kg/1.22CUFT

Remarks

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ
parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
