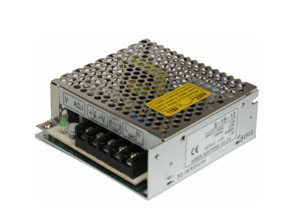

See larger image -Please click product image
S-15
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
Features: |  Shell code：H001 |
| Model | S-15-5 | S-15-12 | S-15-24 | |
| Output | DC Voltage | 5V | 12V | 24V |
Voltage Tolerance | ±2% | ±1% | ±1% | |
Rated Current | 3A | 1.3A | 0.7A | |
Current Range | 0-3A | 0-1.3A | 0-0.7A | |
Rated Power | 15W | 15.6W | 16.8W | |
Ripple & Noise | 50mVp-p | 50mVp-p | 100mVp-p | |
DC Voltage Adj. Range | +10,-5% | ±10% | ±10% | |
Setup, Rise, Hold time | 200ms,100ms,30ms full load | |||
| Input | Voltage Range | 85～132 VAC / 170～264 VAC 47～63 Hz； 240～370VDC | ||
AC Current | 0.5A/115V 0.25A/230V | |||
Efficiency | 65% | 68% | 72% | |
Inrush Current | Cold start 15A/115VAC 30A/230VAC | |||
Leakage Current | ＜0.5 mA/240VAC | |||
| Protection | Over Load | 110%～160% | ||
| Protection type：shut down o/p voltage，recovers automatically after fault condition is removed | ||||
| Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | ||
Storage Temp. & Humidity | -20℃～+85℃；10%～95%RH | |||
Vibration | 10～500Hz，2G 10min./1cycle，period for 60min，each along X,Y,Z axes | |||
| Safety | Withstand Voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG： 100M Ohms/500VDC | |||
| Standards | Safety Standard | Design refer to UL1012 | ||
EMC Standard | Design refer to FCC Part15 J Conduction Class B | |||
| Others | Weight | 0.3Kg | ||
Packing | 45pcs/15Kg/0.9CUFT | |||
| Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. | |||
