S-40
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||
Model | S-40-5 | S-40-12 | S-40-15 | S-40-24 | |||
Output | DC Voltage | 5V | 12V | 15V | 24V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | |||
Rated Current | 8A | 3.5A | 2.8A | 1.8A | |||
Current Range | 0-8A | 0-3.5A | 0-2.8A | 0-1.8A | |||
Rated Power | 40W | 42W | 42W | 43W | |||
Ripple & Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |||
DC Voltage Adj. Range | +10,-5% | ±10% | ±10% | ±10% | |||
Setup, Rise, Hold time | 800ms,50ms,15ms/115VAC 300ms,50ms,60ms/230VAC full load | ||||||
Input | Voltage Range | 85～264 VAC 47～63 Hz；120～370VDC | |||||
AC Current | 1.2A/115 V 0.6A/ 230 V | ||||||
Efficiency | 72%/115VAC | 76%/115VAC | 76%/115VAC | 78%/115VAC | |||
Inrush Current | Cold start 30A/115VAC 60A/230VAC | ||||||
Leakage Current | ＜1 mA/240VAC | ||||||
Protection | Over Load | 110%～160% | |||||
Protection type：current limiting，recovers automatically after fault condition is removed | |||||||
Over Voltage | 115%～135% | ||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | |||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||||
Vibration | 10～500Hz，2G 10min./1 cycle，period for 60min，each along X,Y,Z axes | ||||||
Safety | Withstand Voltage | I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG：100M Ohms/500VDC | ||||||
Standards | Safety Standard | Design refer to UL1012, UL1950，TUV EN60950 | |||||
EMC Standard | Design refer to EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5，ENV50204，EN55024 | ||||||
Others | Weight | 0.44Kg | |||||
Packing | 45pcs/20.3Kg/1.22CUFT | ||||||

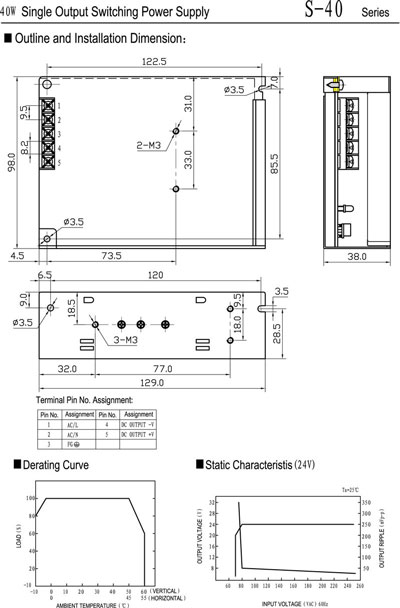

Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equpment must be re-confirmed that it still meets EMC directives. 5. Concrete output current see Derating Curve. | ||||||
