HDR-60

See larger image -Please click product image

HDR-60

We are the professional Din rail switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.

HDR-60 Description

Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
solation classⅡ
LED indicator for power on
100% full load burn-in test
1 years warranty

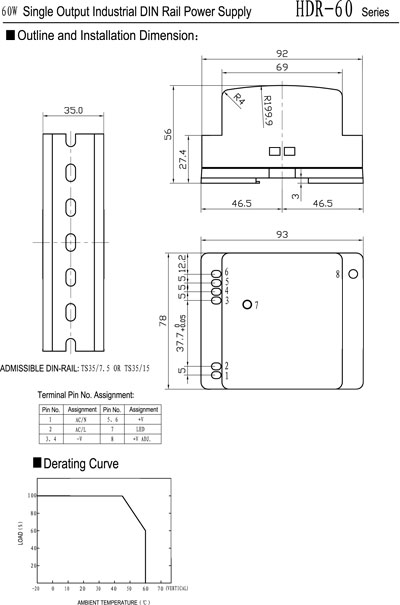

Dimensions: 78*93*56mm (W*H*D)

Shell code：H033

Model		HDR-60-5	HDR-60-12	HDR-60-15	HDR-60-24	HDR-60-48
OUTPUT	DC Voltage	5V	12V	15V	24V	48V
	Voltage Tolerance	±2%	±1%	±1%	±1%	±1%
	Rated Current	6.5A	4.5A	4A	2.5A	1.3A
	Current Range	0-6.5A	0-4.5A	0-4A	0-2.5A	0-1.3A
	Rated Power	32.5W	54W	60W	60W	62.4W
	Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p	150mVp-p
	DC Adjustment Range	-5%,+10%	-8%,+10%	±10%	±10%	±10%
	Setup, Rise Time	100ms,30ms/230VAC at full load200ms,30ms/115VAC at full load
	Hold Time	100ms/230VAC23ms/115VAC at full load
INPUT	Voltage Range	88～264 VAC47～63 Hz； selected by switch 124～370VDC
	AC Current	1.2A/115 V 0.8A/ 230 V
	Efficiency	76%	82%	83%	84%	85%
	Inrush Current	Cold start 20A/115V 40A/230V
	Leakage Current	＜1mA/240VAC
PROTECTION	Over Load	105%～160%
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	115%~135%
		Protection type: hiccup mode,recovers automatically after fault condition is removed
ENVIRONMENT	Working Temp., Humidity	-20℃～+60℃；20%～90 %RH
	Storage Temp., Humidity	-40℃～+85℃；10%～95 %RH
	Vibration	10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P: 3KVAC
	Isolation Resistance	I/P-O/P: 100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL60950-1,TUV EN60950-1,EN50178
	EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204, EN55024,EN61000-6-2，EN61204-3
OTHERS	Weight	0.26Kg
	Packing	45pcs/13Kg/1.22CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
