HDR-45

We are the professional Din rail switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
HDR-45 Description

Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 100KHz
1 years warranty

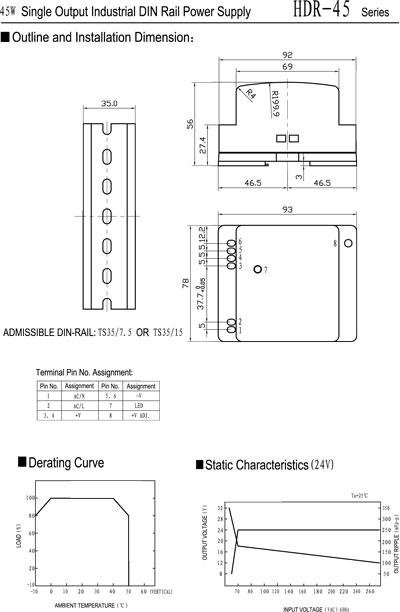

Dimensions: 78*93*56mm (L*W*H)



Shell code:H033

Model

HDR-45-5

HDR-45-12

HDR-45-15

HDR-45-24

OUTPUT

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

5A

3.5A

2.8A

2A

Current Range

0-5A

0-3.5A

0-2.8A

0-2A

Rated Power

25W

42W

42W

48W

Ripple & Noise

100mVp-p

200mVp-p

240mVp-p

480mVp-p

DC Adjustment Range

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

Setup, Rise, Hold Time

800ms,60ms,100ms/230VAC at full load

INPUT

Voltage Range

85~264 VAC47~63 Hz;selected by switch120~370VDC

AC Current

1.5 A/115 V 0.75A/ 230 V

Efficiency

72%

77%

77%

80%

Inrush Current

Cold start 28A/115V 56A/230V

Leakage Current

<1mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10℃~+50℃;20%~90 %RH

Storage Temp., Humidity

-20℃~+85℃;10%~95 %RH

Vibration

10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC

Isolation Resistance

I/P-O/P, 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL60950-1,TUV EN60950-1,EN50178

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,
EN61000-6-2,EN61204-3

OTHERS

Weight

0.24Kg

Packing

45pcs/12Kg/1.22CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
