HDR-120

See larger image -Please click product image

HDR-120

We are the professional Din rail switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.

HDR-120 Description

Features:
Universal AC input / full range
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switch frequency at 55KHz
1 years warranty

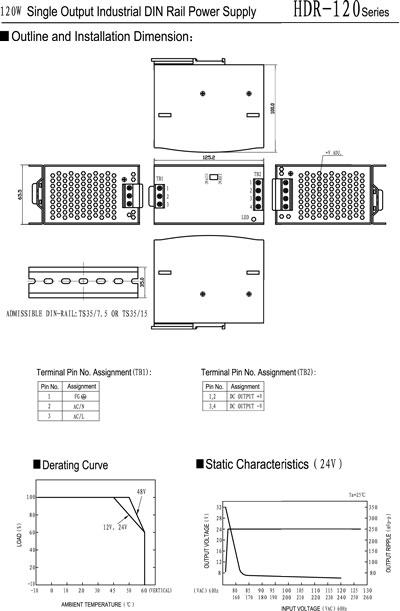

Dimensions: 65.5*125.2*100mm (W*H*D)

Shell code：H036

Model		HDR-120-12	HDR-120-24	HDR-120-48
OUTPUT	DC Voltage	12V	24V	48V
	Voltage Tolerance	±2%	±1%	±1%
	Rated Current	10A	5A	2.5A
	Current Range	0-10A	0-5A	0-2.5A
	Rated Power	120W	120W	120W
	Ripple & Noise	100mVp-p	120mVp-p	150mVp-p
	DC Adjustment Range	12-14V	24-28V	48-53V
	Setup, Rise Time	500ms,70ms/230VAC at full load500ms,70ms/115VACat full load
	Hold Time	36ms/230VAC32ms/115VAC at full load
INPUT	Voltage Range	85～264 VAC/176~264VAC47～63 Hz；selected by 120～370VDC
	AC Current	2.6 A/115 V 1.6A/ 230 V
	Efficiency	81%	83%	84%
	Inrush Current	Cold start 20A/115V 40A/230V
	Leakage Current	＜3.5mA/240VAC
PROTECTION	Over Load	105%～150%
		Protection type: Shut down O/P voltage, recovers automatically after fault condition is removed
	Over Voltage	120%~140%
		Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
	OVER TEMP.	85℃±5℃(TSW1)	90℃±5℃(TSW1)	90℃±5℃(TSW1)
		Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	Working Temp., Humidity	-10℃～+60℃；20%～90 %RH
	Storage Temp., Humidity	-20℃～+85℃；10%～95 %RH
	Vibration	10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL508,UL60950-1，TUV EN60950-1
	EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2)
OTHERS	Weight	0.79Kg
	Packing	16pcs/14Kg/1.22CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
