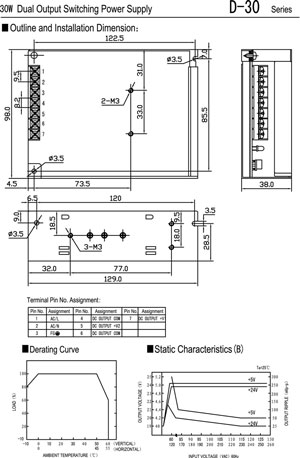

D-30
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
Features: |  Shell Code：H002 |
Model | D-30A | D-30B | ||||
CH1 | CH2 | CH1 | CH2 | |||
Output | DC Voltage | 5V | 12V | 5V | 24V | |
Voltage Tolerance | ±2% | +3,-7% | ±2% | +3,-5% | ||
Rated Current | 4A | 1A | 2.2A | 1A | ||
Current Range | 0.5-4A | 0.1-1A | 0.5-4A | 0.1-1A | ||
Rated Power | 32W | 35W | ||||
Ripple & Noise | 50mVp-p | 100mVp-p | 50mVp-p | 100mVp-p | ||
DC Voltage Adj. Range | CH1： -5%，+10% | |||||
Setup, Rise, Hold time | 200ms,50ms,30ms full load | |||||
Input | Voltage Range | 85～132 VAC/170～264VAC 47～63 Hz，selected by switch 240～370VDC | ||||
AC Current | 0.8A/115 V0.45A/ 230 V | |||||
Efficiency | 72% | 74% | ||||
Inrush Current | Cold start 18A/115V 36A/230V | |||||
Leakage Current | ＜1mA/240VAC | |||||
Protection | Over Load | 105%～150% | ||||
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed | ||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | ||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | |||||
Vibration | 10～500Hz，2G 10min./1cycle，period for 60min，each along X,Y,Z axes | |||||
Safety | Withstand Voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG：100M Ohms/500VDC | |||||
Standards | Safety Standards | Refer to UL1012 | ||||
EMC Standards | Design refer to FCC Part15 J Conduction Class A | |||||
Others | Weight | 0.41Kg | ||||
Packing | 30pcs/13.4Kg/0.86CUFT | |||||
Remark | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. | |||||
