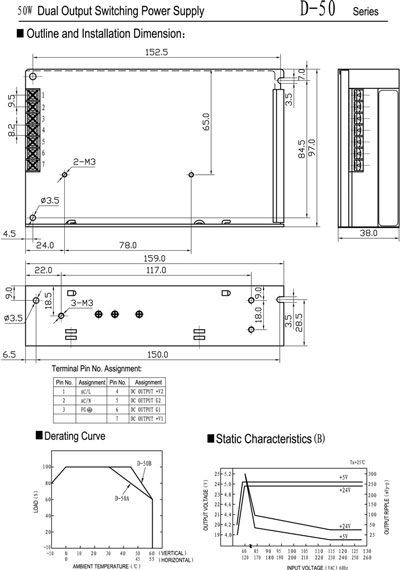

D-50
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
Fetures: |  Shell code：H003 |
Model | D-50A | D-50B | |||
CH1 | CH2 | CH1 | CH2 | ||
Output | DC Voltage | 5V | 12V | 5V | 24V |
Voltage Tolerance | ±2% | +5,-8% | ±2% | ±8% | |
Rated Current | 6A | 2A | 6A | 1A | |
Current Range | 1-6A | 0.3-2A | 1-6A | 0.2-1A | |
Rated Power | 54W | 54W | |||
Ripple & Noise | 50mVp-p | 100mVp-p | 50mVp-p | 100mVp-p | |
DC Voltage Adj. Range | CH1：-5%，+10% | ||||
Setup, Rise, Hold time | 200ms,50ms,20ms full load | ||||
Input | Voltage Range | 85～132 VAC/170～264VAC 47～63 Hz；selected by switch 240～370VDC | |||
AC Current | 1.3A/115VAC0.65A/230VAC | ||||
Efficiency | 73% | 73% | |||
Inrush Current | Cold start 18A/115V 36A/230V | ||||
Leakage Current | ＜0.5mA/240VAC | ||||
Protection | Over Load | 105%～150% | |||
Protection type：Shut down o/p voltage，recovers automatically after fault condition is removed. | |||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||
Vibration | 10～500Hz，2G 10min./1cycle, period for 60min，each along X,Y,Z axes | ||||
Safety | Withstand Voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||
Isolation Resistance | I/P-O/P; I/P-FG; O/P-FG：100M Ohms/500VDC | ||||
Standards | Safety Standards | Refer to UL1012 | |||
EMC Standards | Design refer to FCC Part15 J Conduction | ||||
Others | Weight | 0.53Kg | |||
Packing | 24pcs/13.6Kg/0.75CUFT | ||||
Remark | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. | ||||
