S-60
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| ||||||||
Model | S-60-5 | S-60-12 | S-60-15 | S-60-24 | S-60-48 | |||
Output | DC Voltage | 5V | 12V | 15V | 24V | 48V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |||
Rated Current | 12A | 5A | 4A | 2.5A | 1.3A | |||
Current Range | 0-12A | 0-5A | 0-4A | 0-2.5A | 0-1.3A | |||
Rated Power | 60W | 60W | 60W | 60W | 62.4W | |||
Ripple & Noise | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |||
DC Voltage Adj. Range | +10, -5% | ±10% | ±10% | ±10% | ±10% | |||
Setup, Rise, Hold time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | |||||||
Input | Voltage Range | 85～264 VAC 47～63 Hz；120～370VDC | ||||||
AC Current | 2A/115 V 1A/ 230 V | |||||||
Efficiency | 73% | 76% | 77% | 79% | 79% | |||
Inrush Current | Cold start 30A/115VAC 60A/230VAC | |||||||
Leakage Current | ＜3.5 mA/240VAC | |||||||
Protection | Over Load | 115%～165% | ||||||
Protection type：current limiting，recovers automatically after fault condition is removed | ||||||||
Over Voltage | 115%～135% | |||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | ||||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | ||||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | |||||||
Vibration | 10～500Hz，2G 10min./1 cycle，period for 60min, each along X,Y,Z axes | |||||||
Safety | Withstand Voltage | I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG: 0.5KVAC | ||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG：100M Ohms/500VDC | |||||||
Standards | Safety Standard | Design refer to UL1012, UL1950，TUV EN60950 | ||||||
EMC Standard | Design refer to EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5，6，8，11；ENV50204，EN55024 | |||||||
Others | Weight | 0.51Kg | ||||||
Packing | 30pcs/15.8Kg/0.99CUFT | |||||||

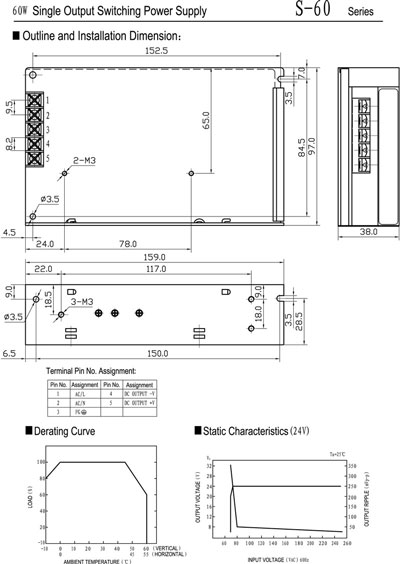

Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equpment must be re-confirmed that it still meets EMC directives. 5. Concrete output current see Derating Curve. | |||||||
