S-100F
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||||||
Model | S-100F-5 | S-100F-7.5 | S-100F-12 | S-100F-15 | S-100F-24 | S-100F-27 | S-100F-48 | ||||
Output | DC Voltage | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V | |||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ||||
Rated Current | 20A | 13.5A | 8.5A | 6.7A | 4.5A | 3.5A | 2.2A | ||||
Current Range | 0-20A | 0-13.5A | 0-8.5A | 0-6.7A | 0-4.5A | 0-3.5A | 0-2.2A | ||||
Rated Power | 100W | 101W | 102W | 100.5W | 108W | 94.5W | 105.6W | ||||
Ripple & Noise | 100mVp-p | 125mVp-p | 125mVp-p | 125mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | ||||
DC Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ||||
Setup, Rise, Hold time | 1s,30ms,15ms full load | ||||||||||
Input | Voltage Range | 88～132 VAC/176～264VAC 47～63 Hz； 248～370VDC | |||||||||
AC Current | 3.15A/115 V 1.5A/ 230 V | ||||||||||
Efficiency | 76% | 78% | 80% | 81% | 83% | 83% | 84% | ||||
Inrush Current | Cold start 30A/115V 60A/230V | ||||||||||
Leakage Current | ＜1 mA/240VAC | ||||||||||
Protection | Over Load | 115%～165% | |||||||||
Protection type：shut down o/p voltage，recovers automatically after fault condition is removed | |||||||||||
Over Voltage | 115%～135% | ||||||||||
Protection type：hiccup mode，recovers automatically after fault condition is removed | |||||||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||||||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||||||||
Vibration | 10～500Hz，2G 10min./1 cycle，period for 60min，each along X,Y,Z axes | ||||||||||
Safety | Withstand Voltage | I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG： 100M Ohms/500VDC | ||||||||||
Standards | Safety Standard | Design refer to UL1012 TUV EN60950 | |||||||||
EMC Standard | Design refer to EN55022，EN61000-3-2，-3；EN61000-4-2，3，4，5，6，8，11；ENV50204，EN55024 | ||||||||||
Others | Weight | 0.65Kg | |||||||||
Packing | 30pcs/19.8Kg/1.22CUFT | ||||||||||

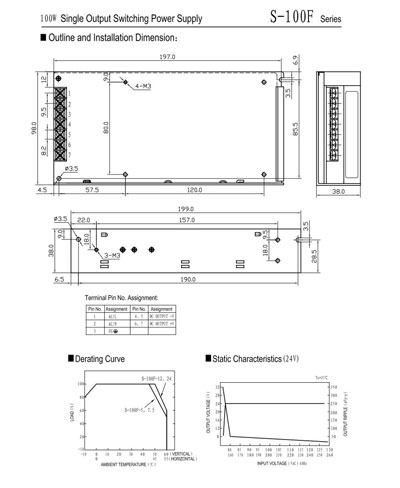

Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equpment must be re-confirmed that it still meets EMC directives. 5. Concrete output current see Derating Curve. | ||||||||||
