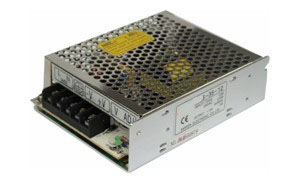

See larger image -Please click product image
S-45
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
| |||||||
Model | S-45-5 | S-45-12 | S-45-15 | S-45-24 | |||
Output | DC Voltage | 5V | 12V | 15V | 24V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | |||
Rated Current | 8A | 3.7A | 3A | 1.9A | |||
Current Range | 0-8A | 0-3.7A | 0-3 A | 0-1.9A | |||
Rated Power | 40W | 44.4W | 45W | 45.6W | |||
Ripple & Noise | 90mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |||
DC Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% | |||
Setup, Rise, Hold time | 200ms,100ms,30ms at full load | ||||||
Input | Voltage Range | 85~132VAC/170～264VAC ， 47~63Hz; 选择240~370VDC | |||||
AC Current | 1A/ 115VAC 0.5A/230VAC | ||||||
Efficiency | 70% | 76% | 78% | 78% | |||
Inrush Current | Cold start 18A/115V 36A/230V | ||||||
Leakage Current | ＜2mA/240VAC | ||||||
Protection | Over Load | 110%～160% | |||||
Protection type: Current limiting, recovers automatically after fault condition is removed. | |||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | |||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | ||||||
Vibration | 10～500Hz，2G 10min./1cycle，period for 60min, each along X, Y, Z axes | ||||||
Safety | Withstand Voltage | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||
Standards | Safety Standard | Design refer to UL1012, | |||||
EMC Standard | Design refer to FCC Part15 J Conduction Class B | ||||||
Others | Weight | 0.41Kg | |||||
Packing | 45pcs/18.8Kg/1.25CUFT | ||||||
Remarks | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | ||||||
