Model | S-35-5 | S-35-9 | S-35-12 | S-35-15 | S-35-24 | |||
Output | DC Voltage | 5V | 9V | 12V | 15V | 24V | ||
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |||
Rated Current | 7A | 3.6A | 3A | 2.4A | 1.5A | |||
Current Range | 0-7A | 0-3.6A | 0-3A | 0-2.4A | 0-1.5A | |||
Rated Power | 35W | 32.4W | 36W | 36W | 36W | |||
Ripple & Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |||
DC Voltage Adj. Range | +10,-5% | ±10% | ±10% | ±10% | ±10% | |||
Setup, Rise, Hold time | 200ms,100ms,30ms full load | |||||||
Input | Voltage Range | 85~132 VAC/170~264VAC 47~63 Hz; 240~370VDC | ||||||
AC Current | 0.8 A/115 V 0.45A/ 230 V | |||||||
Efficiency | 70% | 72% | 76% | 78% | 78% | |||
Inrush Current | Cold start 18A/115V 36A/230V | |||||||
Leakage Current | <2mA/240VAC | |||||||
Protection | Over Load | 110%~160% | ||||||
Protection type:current limiting, recovers automatically after fault condition is removed | ||||||||
Environment | Working Temp. & Humidity | -10℃~+60℃;20%~90 %RH | ||||||
Storage Temp. & Humidity | -20℃~+85℃;10%~95 %RH | |||||||
Vibration | 10~500Hz,2G 10min./1 cycle, period for 60min, each along X,Y,Z axes | |||||||
Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||
Standards | Safety Standard | Design refer to UL1012 | ||||||
EMC Standard | Design refer to FCC Part15 J Conduction Class B | |||||||
Others | Weight | 0.41Kg | ||||||
Packing | 45pcs/18.8Kg/1.22CUFT | |||||||

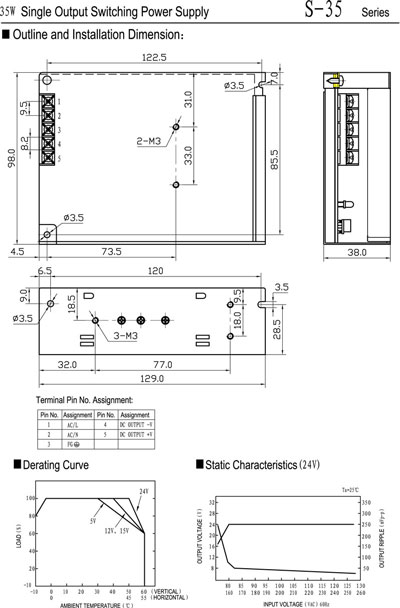

Remarks | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Concrete output current see Derating Curve. |
