Weather Protected

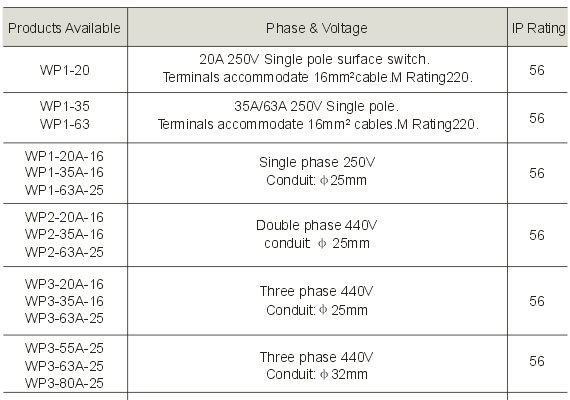

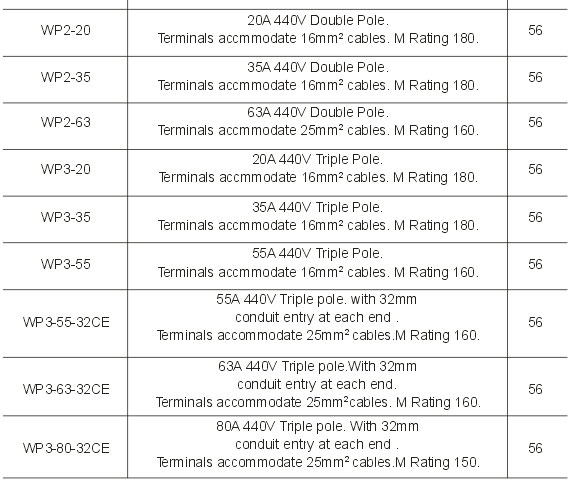

    The WP Series of Weatherprotected lsolating Swithches is a robust range of Switches suitable for virtually any external application .lncluded in the range are single, Double and triple pole switches from 20 to 80 Am-ps. The base mounted  mechanism provides  for easier termination and more wiring room.Switch dimensions are165x82mm With an overall height of 85mm.
Isolating Switches
    Fixed Earth and Neutral connector bars with dual clamping screws per tunnel  provide equal stripping lengths and secure clamping for all cables.Terminal bore size 5x6.6mm.
    A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
