56SW58 Weatherprotected Switch

We are the professional IP56 56SW58 Weatherprotected Switch supplier,good quality with competitive price,welcome to contact us for enquiry.
56SW58 Weatherprotected Switch Description

Application

56SW Series protected switch is to serve in the A.C.circuit of rated voltage up to 250V,rated current of up to 16A and frequency of 50Hz and such occasions as proof dust,proof water,proof impact and proof ultraviolet radiation.It features security,durability,resistance to impact and pleasant appearance and high durability in case of hard environment,etc.The degree of protection of series M58 protected switch is IP56.

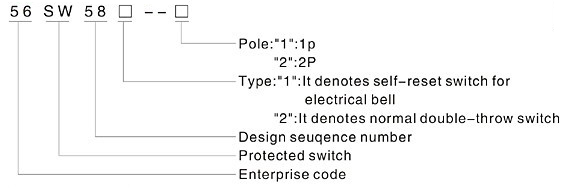

Type and meanings

Technical specification

 Code Number

 56SW581-1

56SW581-2

56SW582-1

56SW582-2

 Pole

 1

2

1

2

 Ith(A)

 16

 Ui=Ue(V)

 250

 Le(A)

AC21

 16

AC22

 8

AC23

 6

 Max.start capacity of motor

 50

 Cable Specification

 Min

 1.5

 Max

 6

 Connection capacity of terminal

 3X2.5
