Model

CH1

CH2

CH2

CH3

Output

DC Voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

Voltage Tolerance

±2%

±6%

±6%

±2%

±6%

±6%

±2%

±6%

±6%

Rated Current

5A

2.5A

0.5A

5A

2.5A

0.5A

5A

2A

0.5A

Current Range

0.5-7A

0.2-3.5A

0-1A

0.5 -7A

0.2-3.5A

0-1A

0.5-7A

0.2-3A

0-1A

Rated Power

57.5W

61W

62.5W

Ripple & Noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Voltage Adj. Range

CH1：-5%，+10%

Setup, Rise, Hold time

300ms,50ms,10ms/230VAC 800ms, 50ms, 10ms/115VAC full load

Input

Voltage Range

85～264 VAC 47-63Hz；120～370VDC

AC Current

2A/115 V 1A/ 230 V

Efficiency

69%

72%

72%

Inrush Current

Cold start 30A/115V 60A/230V

Leakage Current

＜3.5mA/240VAC

Protection

Over Load

105%～150%

Protection type：Hiccup mode，recovers automatically after fault condition is removed.

Over Voltage

5V：115%～135%

Protection type：Hiccup mode, re-power on to recover

Environment

Working Temp. & Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp. & Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min，each along X,Y,Z axes

Safety

Withstand Voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG ： 100M Ohms/500VDC

Standards

Safety Standard

Design refer to UL1012,UL60950, TUV EN60950

EMC Standard

EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

Others

Weight

0.55Kg

Packing

30pcs/17Kg/0.99 CUFT

Remark

1. All parameter not specially mentioned are measured at 230VACinput，rated load and 25℃ of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equpment must be re-confirmed that it still meets EMC directives.

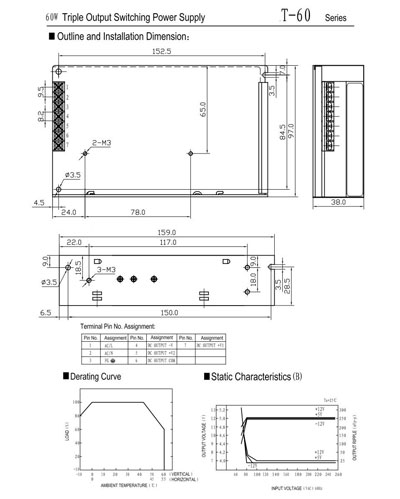

5. Concrete output current see Derating Curve.
