T-50
We are the professional switching power supply supplier,good quality with competitive price,welcome to contact us for enquiry.
Features: |  Shell code：H003 |
Model | T-50A | T-50B | T-50C | T-50D | ||||||||||||
CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |||||
Output | DC Voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V | |||
Voltage Tolerance | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±6% | ±6% | ||||
Rated Current | 7A | 1A | 1A | 5A | 1A | 1A | 4A | 1A | 1A | 3A | 1A | 1A | ||||
Current Range | 0.6-7A | 0.2-1A | 0.2-1A | 0.6-5A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1.2A | 0.2-1.2A | ||||
Rated Power | 52W | 49W | 50W | 51W | ||||||||||||
Ripple & Noise | 100 mV | 100 mV | 100 mV | 100 mV | 100 mV | 100 mV | 100 mV | 100 mV | 100 mV | 50 mV | 120 mV | 120 mV | ||||
DC Voltage Adj. Range | CH1： -5%，+10% | |||||||||||||||
Setup, Rise, Hold time | 200ms,100ms,16ms full load | |||||||||||||||
Input | Voltage Range | 85～132 VAC / 170～264 VAC 47-63Hz；selected by switch 240～370VDC | ||||||||||||||
AC Current | 1.6A/115 V0.8A/ 230 V | |||||||||||||||
Efficiency | 66% | 69% | 71% | 72% | ||||||||||||
Inrush Current | Cold start 20A/115V 40A/230V | |||||||||||||||
Leakage Current | ＜0.5mA/240VAC | |||||||||||||||
Protection | Over Load | 105%～150% | ||||||||||||||
Protection type：shut down o/p voltage，fold back current limiting, recovers automatically after fault condition is removed. | ||||||||||||||||
Environment | Working Temp. & Humidity | -10℃～+60℃；20%～90 %RH | ||||||||||||||
Storage Temp. & Humidity | -20℃～+85℃；10%～95 %RH | |||||||||||||||
Vibration | 10～500Hz，2G 10min./1 cycle，period for 60min，each along X,Y,Z axes | |||||||||||||||
Safety | Withstand Voltage | I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||||||||||||
Isolation Resistance | I/P-O/P, I/P-FG. O/P-FG： 100M Ohms/500VDC | |||||||||||||||
Standards | Safety Standard | Design refer to UL1012 | ||||||||||||||
Others | Weight | 0.54Kg | ||||||||||||||
Packing | 24pcs/14Kg/0.75CUFT | |||||||||||||||

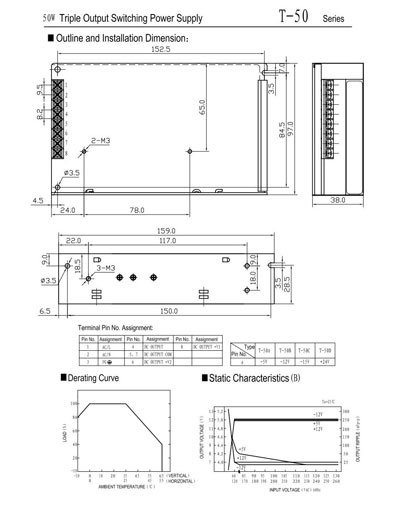

Remark | 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Concrete output current see Derating Curve. | |||||||||||||||
