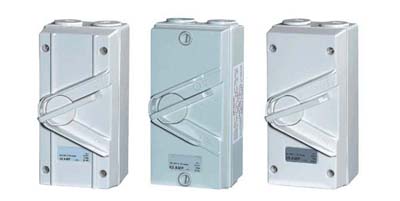

The UKF Series of Waterproof Isolating Switches is a robust rang of switches suitable for virtually and external application.

Included in the range are single,double and triple pole switches from 20 to 80 Amps.The base mouted mechanism provides for easier termination and more wiring room.Switch dimen-sions are 165mm A82mm with an overall height of 85mm.

Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal as tripping lengths and secure clamping for all cables,teminal bore size 5-A6.6mm.

A safety feature for mounting switches to metal stuctures is the insulating caps that cover base mounting screws to totally protect them from any live cables.

Each unites supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw cas.Screw caps must beinstalled to ensure IP rating.The impact resistant base and cover will survive the hardest knocks in almost any installation.The two sections are sealed with a one piece weather seal gasket.

For secutity,a 7mm diammeter hole is provided for padlocking the lever in the OFF position.Deep moulsed barriers protect the operating lever from physical abuse or accidental switching.

All units compcy to IEC60947-3.

Standard colors are Grey & White.

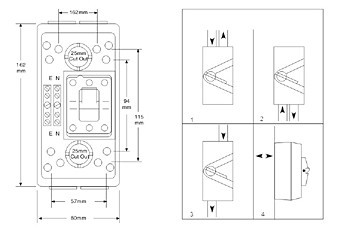

1.Cables looped in and out from overhead

2.In and out from underground

3.In and out straight through the switch

4.Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.

Dual 25mm screwed conduit entries top and bottom(up to 55 Amp.)allows four ways to surface wire the switch.
