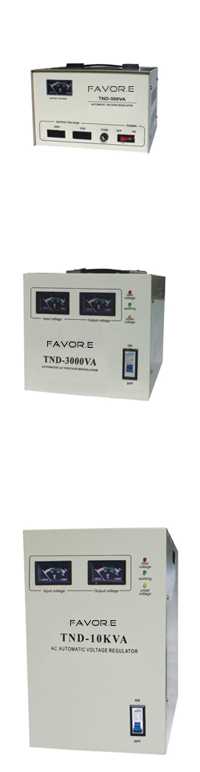

TND SVC FULLY Automatic Voltage Stabilizer
We are the professional TND(SVC) FULLY Automatic Voltage Stabilizer manufacturer and supplier,good quality with competitive price,welcome to contact us for enquiry.
TND SVC FULLY Automatic Voltage Stabilizer Description
Feature |
TND(SVC) single-phase high accuracy full automatic AC vltage stabilizers Series is key series of our products, It is made of contact type self-couping voltage regulator, servo motor, automatic control circuit and so on, When the voltage of the nerwork is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the serovomotor to adjust the position of the carbon brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state. Having the advantages such as wide vareties, complete specifications, beautiful appearance etc. and the characte ristics such as undistored waveform, high efficiency, reliable performance, long-term operation, etc., and also being provided with the protective functions such as time-delay, over-voltage, etc., the series of stabiliaers, of the general type, are the ideal voltage stabiliaed soruces which can the be widely applied to any occasions requiring power to assure the normal operati-on of your power driven equipment. |
|
Specifications |
Input Voltage | 150V-250V, 160-250V | Output Voltage | 220V±3%, 110V±3% | Phase | Single-phase | Frequeney | 50Hz/60Hz | Response time | Within 1 see. against 10% input | Environment temperature | -10℃-+40℃ | Opposite degree of humidity | <95% | Waveform disortion | No-lack distortion in waveform | Insulation resistance | >5MΩ |
|
|
Specification Dimensonsand Weight |
TYPE | External Package Size(cm) | N.W.(kg) | Qty Per Carton | TND-0.5K | 18.5×15×12.5 | 4.6 | 4PCS/CTN | TND-1K | 21×18×12.5 | 6.5 | 4PCS/CTN | TND-1.5K | 21×18×14.5 | 7 | 4PCS/CTN | TND-2K | 27.5×23.5×18.5 | 10.5 | 1PCS/CTN | TND-3K | 29×23×22 | 13.6 | 1PCS/CTN | TND-5K | 35×23×28 | 22.4 | 1PCS/CTN | TND-7K | 35×23×28 | 30 | 1PCS/CTN | TND-10K | 47×26×22 | 43 | 1PCS/CTN | TND-5K(Vertical type) | 31.5×28×47 | 25 | 1PCS/CTN | TND-10K(Vertical type) | 36×28×52 | 48 | 1PCS/CTN | TND-15K | 42×38×73 | 75.5 | 1PCS/CTN | TND-20K | 42×38×73 | 80 | 1PCS/CTN | TND-30K | 42×38×83 | 87 | 1PCS/CTN |
|
