"KB、KU、KS" type fuse link belong to"K"and "T"type fuses, it has general type,universal type and screw type available according to IEC-282 sta-ndard. The product drop-out type fuse of 11~36V grade.

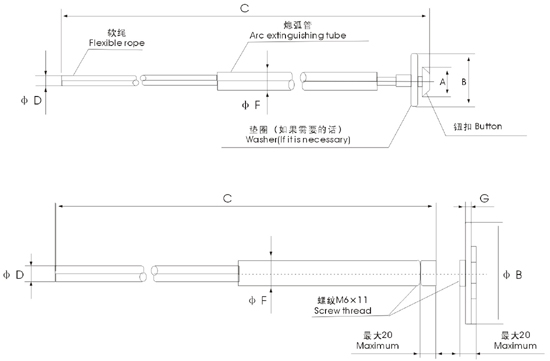

Rated current(A) | Dimension(mm) | Quantity/carton | ||||
A | B | C | D | F | ||
1 (to)25 | 12.5 ± 0.2 | 19.0 ± 0.2 | (Note)1 | 2.0 | 6.5 | 500 |
30 (to)40 | 12.5 ± 0.2 | 19.0 ± 0.2 | (Note)1 | 3.0 | 8.0 | 500 |
50(to)100 | 19.0 ± 0.3 | (Not applicable) | (Note)1 | 5.0 | 10.0 | 250 |
140(to)200 | 19.0 ± 0.3 | (Not applicable) | (Note)1 | 7.0 | 12.0 | 150 |

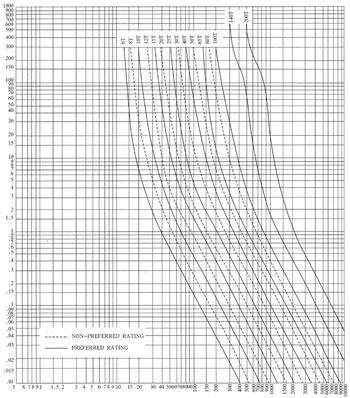

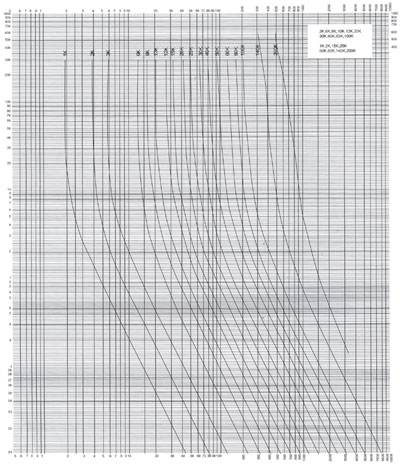

Current in amperes (A)
