Model

D-60A

D-60B

CH1

CH2

CH1

CH2

Output

DC Voltage

5V

12V

5V

24V

Voltage Tolerance

±2%

±6%

±2%

±5%

Rated Current

4A

3A

3A

1.8A

Current Range

0.3-6A

0.2-4A

0.3-6A

0.2-2.2A

Rated Power

56W

58W

Ripple & Noise

75mVp-p

150mVp-p

75mVp-p

150mVp-p

DC Voltage Adj. Range

CH1： -5%，+10%

CH1： -5%，+10%

Setup,Rise,Hold time

300ms,50ms ,80ms/230VAC 800ms,50ms,10ms/115VAC full load

Input

Voltage Range

85～264 VAC/ 47～63 Hz； 120～370VDC

AC Current

2A/115 V 1A/ 230 V

Efficiency

73%

76%

Inrush Current

Cold start 30A/115VAC 60A/230VAC

Leakage Current

＜3.5mA/240VAC

Protection

Over Load

105%～150%

Protection type: Current limiting，recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection type：Hiccup mode，auto-recovery after fault condition is removed

Environment

Working Temp.& Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp.& Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cyle，period for 60min，each along X,Y,Z axes

Safety

Withstand Voltage

I/P-O/P：3KVAC I/P-F/G：1.5KVAC O/P-FG：0.5KVAC

Isolation Resistance

I/P-O/P，I/P-FG，O/P-FG： 100M Ohms/500VDC

Standards

Safety Standards

Design refer to UL1012 , UL60950 ,EN60950

EMC Standards

DesignrefertoEN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

Others

Weight

0.54Kg

Packing

30pcs/16.7Kg/0.99CUFT

Remark

1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μparallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.

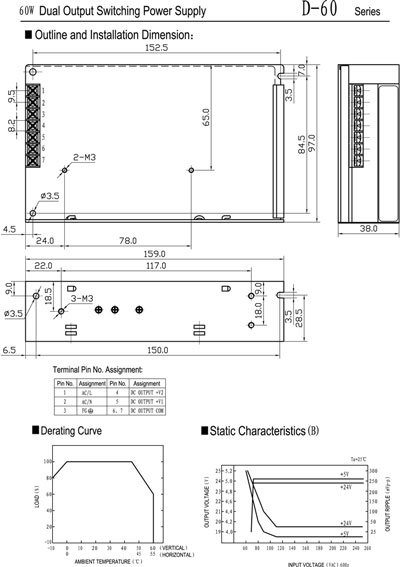

4. Concrete output current see Derating Curve.
