The auto fuse is according QC/T420,GB13539 standard.It to be used in the auto electric circuit for the short circuit protection,the rated voltage is DC24-72V,AC125V,the rated current is 35A-800A,(AC50-60Hz).

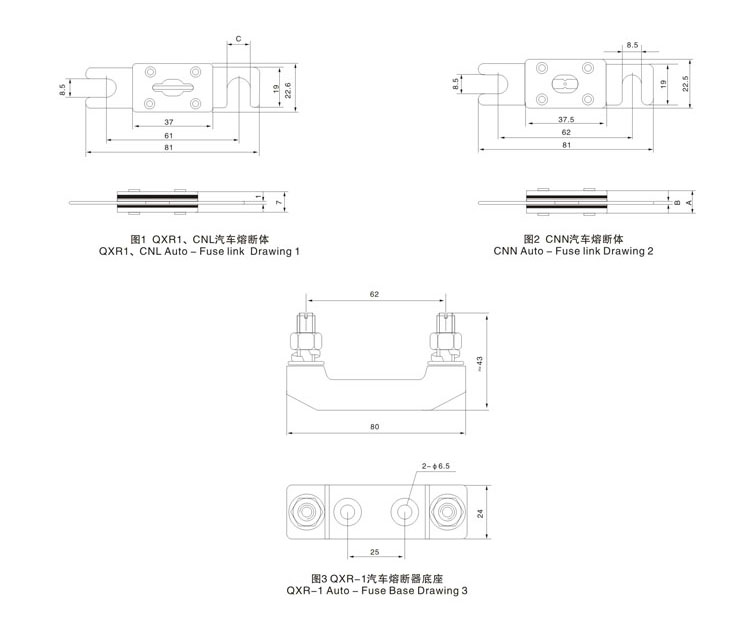

Type | Competitor Part Number | Rated Voltage(V) | Class Rating(A) | Dimension(mm) | |||
Fig. | A | B | C | ||||
QXR1(Fuse Link) | - | DC24-72V/AC125 | 500 | Fig.1 | - | - | 11 |
CNL(Fuse Link) | - | DC24-72V/AC125 | 500 | Fig.1 | - | - | 8.5 |
CNN(Fuse Link) | - | DC24-72V/AC125 | 300 | Fig.2 | 9.5 | 1.3 | - |
CNN(Fuse Link) | - | DC24-72V/AC125 | 600 | Fig.2 | 13 | 5.2 | - |
CNN(Fuse Link) | - | DC24-72V/AC125 | 800 | Fig.2 | 14 | 6.5 | - |
QXR-1(Fuse Base) | RQD-1 | AC220 | 800 | Fig.3 |
