Three phase NH-fuse disconnecting switches

We are the professional fuse disconnecting switches manufacturer and supplier,good quality with competitive price,welcome to contact us for enquiry.
Three phase NH-fuse disconnecting switches Description

NH-fuse disconnecting switches 3 phase break simultaneously,upper/lower end connection

For NT and NH fuse links
According to EN 60947-1 and EN 60947-3
Rated voltage:690V AC/440V DC
Rated currents:160A,250A,400A/630A
Rated insulation voltage :size NH00 to NH3 AC 750V
Rated short-circuit:50kA AC eff,25kA DC eff
Degree of protection IP 20 with operational status,IP 10 with open slewing equipment

For NH-insert type In
A

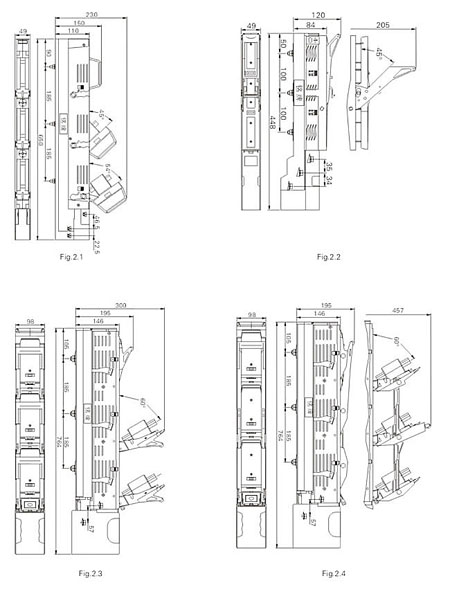

mm2section of wire mm2StructureOrder No. Fig.Weight(g)
NH-fuse disconnecting switches 3 phase break simultaneously.upper/lower end connection.
NH0016070Pressure plate connecting clamp/screw M8 FVS-160TFig.2.212500
NH1250120Screw M10
FVS-250TFig.2.452000
NH2400240Screw M10 FVS-400TFig.2.463000
NH36302×24Screw M12 FVS-630TFig.2.470000
