Function

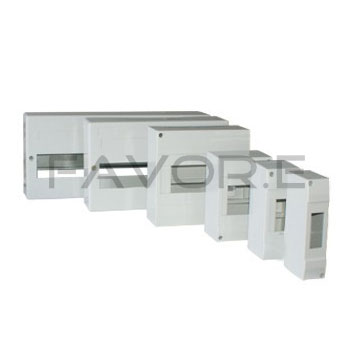

G/H series of surface box is kind of good-looking  outline,small volume,easy to install economically modular distribution box.It mainly use for building electric distribution system’s installation,matched and house rebuild fitment etc.application.The max rated current is 63A.

Explanation

1.Technique parameter:

Distribution box rated current

1 way to 4 way:50A

6 way to 18 way:63A

2.Material:

Insulation:Fire-proof type refractory material

Color:White color

Standard:accord with IEC60439-3

3.Protective degree:

IEC60529:IP30

Fire-resistant and anomaly heat ability:

IEC60529-2-1 standard,650C/30sec

4.Composition structure:

Removable mate blocks to increase the poles.

The removable various size holes are available on the box of up and down,bottom in case of
connecting wires in and out.
